Building & ConstructionVentilators

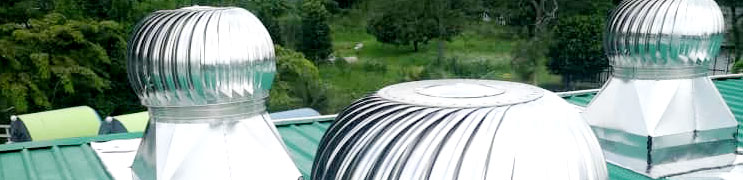

An energy free wind turbo ventilator built for the Asian conditions. HONG provides air circulation in the space between the ceiling and outer roof, and removes very hot air which increases room temperature in your home or factory.

Effective roof space ventilation includes Eave vent usually installed under the eave to draw in fresh outside air, and HONG ventilator to exhaust the superheated and moisture laden air.

Properties:

  1. Duo-fan
  2. Ball bearing
  3. Corrosion resistant
  4. Strength
  5. Weather resistant
  6. Fit any roof


Specification:

Dimension H 360 H 400 H 460 H 600
Effective Throat (Dia.) 360mm 400mm 460mm 600mm
Overall (H) 330 357 425 425
Overall (Dia.) 420 460 640 820
Number of Vane 20 26 26 34
Overall Weight 2.01 4.8 5.5 9.0



Building guide for AIR CHANGE PER HOIR (ACH)
1. Storage warehouses with no process 5
2. Factories with minimal processing machinery 6
3. Factories with minimal heat and fume emission 8
4. Factories with high heat and fume emission 10
5. Factories with furnaces and boiler 15
